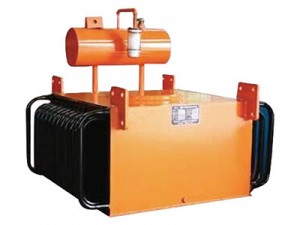

RCDD干式自卸式電磁除鐵器
產品概述
RCDD干式自卸式電磁除鐵器是一種用于自動清除粉狀或塊狀非磁性物料中的雜鐵的除鐵裝置。其內部采用電工專用樹脂澆注，自冷式全密封結構。具有透磁深度大。吸力強、防塵、防雨、耐腐蝕等優點，在極其惡劣的環境中仍能可靠運行。
技術參數
| 型號 |
適應帶寬 ≤mm |
額定吊高 h mm |
磁場強度 ≥mT |
物料厚度 ≤mm |
勵磁功率 ≤Kw |
驅動功率 ≤Kw |
適應帶速 ≤m/s |
重量 kg |
外型尺寸mm | |||||
| A | B | C | D | E | ||||||||||
| RCDD-5 | 500 | 150 | 60 | 100 | 1 | 1.5 | 2.5 | 950 | 1900 | 940 | 710 | 740 | 950 | |
| RCDD-6 | 600 | 175 | 60 | 130 | 1.8 | 1.5 | 1380 | 2000 | 1020 | 710 | 840 | 1050 | ||
| RCDD-6.5 | 650 | 200 | 70 | 150 | 2 | 2.2 | 1490 | 2050 | 1190 | 710 | 988 | 1250 | ||
| RCDD-8 | 800 | 250 | 70 | 200 | 3.0 | 2.2 | 1770 | 2200 | 1270 | 750 | 1090 | 1350 | ||
| RCDD-10 | 1000 | 300 | 70 | 250 | 4.5 | 3.0 | 2380 | 2750 | 1635 | 940 | 1420 | 1400 | ||
| RCDD-12 | 1200 | 350 | 70 | 300 | 5.8 | 3170 | 3000 | 1800 | 1010 | 1580 | 1700 | |||
| RCDD-14 | 1400 | 400 | 70 | 350 | 6.7 | 4.0 | 4800 | 3500 | 2050 | 1050 | 1800 | 2000 | ||
| RCDD-16 | 1600 | 450 | 70 | 400 | 9.5 | 5.5 | 6300 | 3900 | 2450 | 1180 | 2200 | 2350 | ||
| RCDD-18 | 1800 | 500 | 70 | 450 | 12.5 | 7.5 | 7800 | 4400 | 2850 | 1290 | 2600 | 2800 | ||
| 型號 | 冷卻方式 | 適應帶寬 mm | 額定高度 mm | 磁場強度 mT | 勵磁功率 ≤kw | 驅動功率 kw | 適應帶速 ≤m/s | 外形尺寸mm φD×B | 重量 | |
| RCDD-6.5 | T1 |
干 式 自 冷 |
650 | 200 | 90 | 4 | 2.2 | 5.8 | 2320*1190*820 | 1800 |
| T2 | 120 | 6 | 2.2 | 2540*1350*860 | 2250 | |||||
| T3 | 150 | 10 | 2.2 | 2750*1400*860 | 2950 | |||||
| RCDD-8 | T1 | 800 | 250 | 90 | 5.3 | 2.2 | 2520*1350*880 | 2320 | ||
| T2 | 120 | 7.5 | 2.2 | 2750*1630*880 | 2560 | |||||
| T3 | 150 | 11.5 | 3 | 2800*1650*920 | 3450 | |||||
| RCDD-10 | T1 | 1000 | 300 | 90 | 7.1 | 3 | 2750*1650*920 | 3100 | ||
| T2 | 120 | 9 | 3 | 2920*1750*950 | 3700 | |||||
| T3 | 150 | 14 | 4 | 3000*1800*960 | 4600 | |||||
| RCDD-12 | T1 | 1200 | 350 | 90 | 9 | 4 | 2950*1750*950 | 4320 | ||
| T2 | 120 | 13.5 | 4 | 3150*2050*950 | 5320 | |||||
| T3 | 150 | 16 | 5.5 | 3450*2050*960 | 6100 | |||||
| RCDD-14 | T1 | 1400 | 400 | 90 | 11.5 | 4 | 3200*2100*960 | 6390 | ||
| T2 | 120 | 18 | 5.5 | 3750*2250*1180 | 7400 | |||||
| T3 | 150 | 25 | 5.5 | 3900*2250*1180 | 8200 | |||||
| RCDD-16 | T1 | 1600 | 450 | 90 | 18 | 5.5 | 3900*2200*1150 | 7150 | ||
| T2 | 120 | 25 | 5.5 | 4100*2450*1200 | 8700 | |||||
| T3 | 150 | 40 | 7.5 | 4100*2450*1260 | 11750 | |||||
| RCDD-18 | T1 | 1800 | 500 | 90 | 25 | 7.5 | 4100*2450*1230 | 9550 | ||
| T2 | 120 | 32 | 7.5 | 4350*2600*1280 | 11540 | |||||
| T3 | 150 | 45 | 11 | 4350*2650*1280 | 15000 | |||||
| RCDD-20 | T1 | 2000 | 550 | 90 | 30 | 7.5 | 4600*2650*1280 | 12460 | ||
| T2 | 120 | 40 | 11 | 4950*2850*1300 | 14700 | |||||
| T3 | 150 | 50 | 11 | 4950*2850*1350 | 18690 | |||||
